Product Features:
▪ Convenient for microscopic observation.
▪ Bottom materials: Borosilicate Glass, thickness 1.0 +0.1mm. No surface treatment for glass bottom. ▪ Chamber color: Clear/White/Black
▪ Easy open flip for chamber & slide disassembly.
▪ No chemical adhesives used.
▪ Designed to prevent cross contamination.
▪ Alphanumeric labeling.
▪ Packing trays can be used as incubation racks in CO2 incubators.
Specifications:
|
Black Catalog Number
|
Descriptions
|
Growth Area/ Well (cm2)
|
Working Volume (mL)
|
Well Dimension (mm)
|
/Pack
|
/Case
|
|
NT230111
|
1 well w/glass slide
|
9.4
|
2.5-5.5
|
23 x 49.6
|
6
|
12
|
|
NT230112
|
2 well w/glass slide
|
4.55
|
1.2-2.5
|
23 x 22.2
|
6
|
12
|
|
NT230114
|
4 well w/glass slide
|
2.13
|
0.5-1.3
|
23 x 11.4
|
6
|
12
|
|
NT230118
|
8 well w/glass slide
|
0.98
|
0.2-0.6
|
11.5 x 11.4
|
6
|
12
|
Details

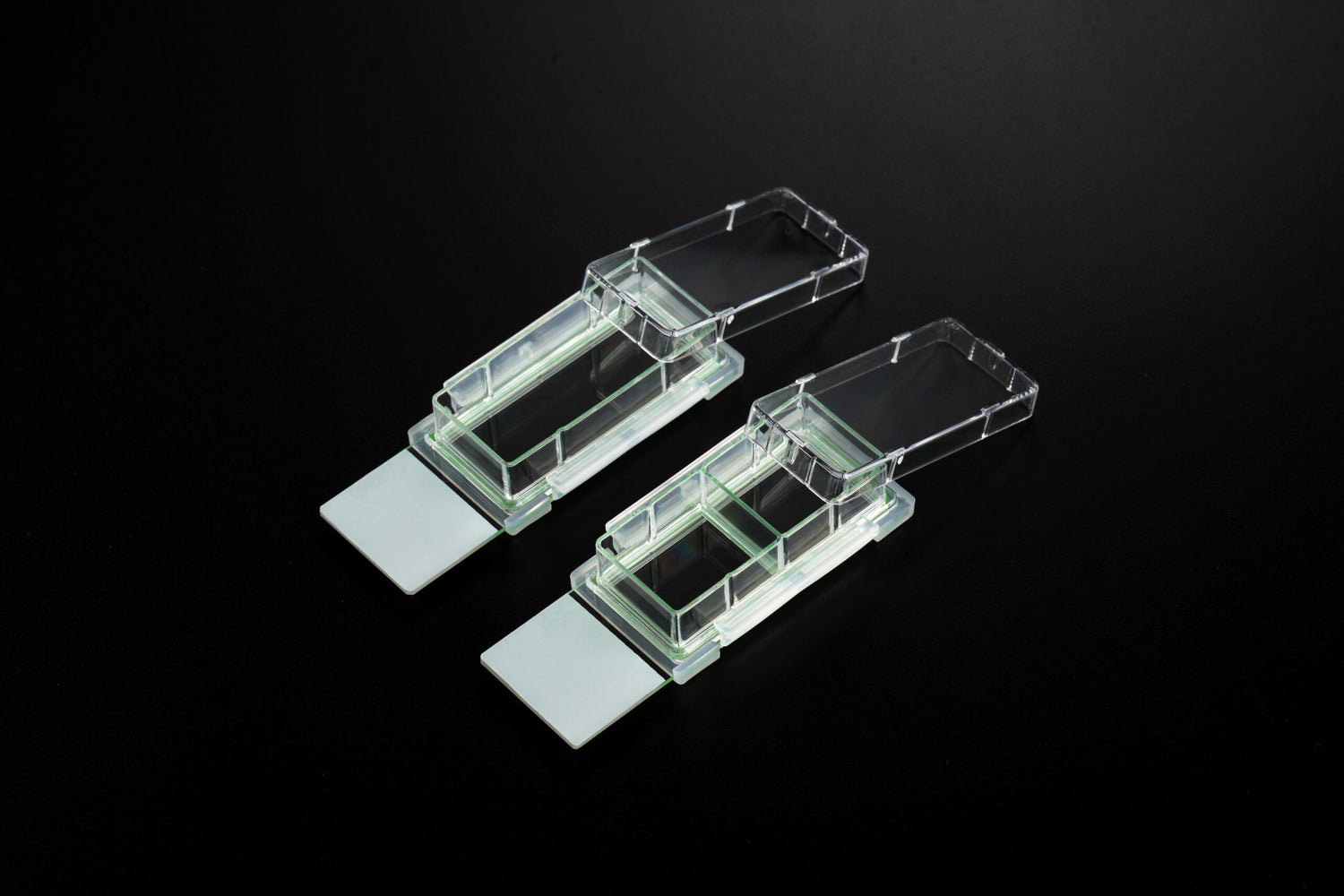

This Chamber Cell Culture Slide from Nest Scientific allows scientists to grow cells directly on a microscope slide without need for further transfer. The microscope slide is is a standard size, 25 mm x 75 mm.
Disassembly of the slide is easy when it comes time view your cells under the microscope. Simply snap the locks on the side of the slide down and lift to remove the slide and chambers from the base, no need for a separate tool for disassembly. From there, the chambers themselves can be removed by hand and you're left with slide for microscope analysis. The inert hydrophobic green border printed on the slide allows for easy identification of cell culture area.
Each chamber slide is composed of a base made of polypropylene, the slide, which is made of borosilicate glass, the clear chambers which are made of polystyrene, and the lid which is made of polypropylene. The slides come in packs of 6 slides/per tray and the tray can be used as an incubation rack in your CO2 incubator.
Descriptions From Manufacturer:
NEST Cell Culture Chamber Slides are designed for various cell-based experiments and are also useful for virus, toxicity tests and immunocytological experiments. Cell Culture Chamber Slides provide removable chambers that enable cell growth directly on the microscopic slide, convenient for staining and microscopic examination without cell transfer. Chambers with various well numbers and colors are available for different applications.
