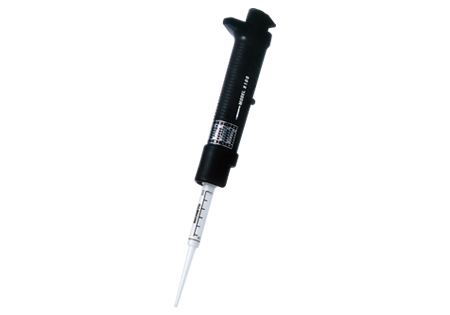

NICHIRYO Model 8100 Variable Repetitive Syringe Dispenser and Acces
$401.44
$441.59
Unit price
/
Unavailable
Shipping calculated at checkout.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
NICHIRYO Model 8100 Variable Repetitive Syringe Dispenser and Acces
From
$79.50
$87.45
Unit price
/
Unavailable
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
- Up to 35 variations of dispensing.
- Easy single handed operation.
- Easy to change volume settings and syringes.
- Suitable for dispensing viscose liquids due to the positive displacement system.
- Syringes, exclusive of SG-V,N3,Z are autoclavable.(121°C for 20 minutes)
- Without using O-ring, SG-V,N3 and Z are more suitable for dispensing solvents.
- Slender syringe are easier to extract liquids from vials.
- Syringes and pistons are made from PP(N3,Z are made from PE.)
Specifications
| Cat. No | Product name |
|---|---|
| 00-8100 | MODEL 8100 |
AC & CV
| Syringes | dial No | Accuracy(%) | Precision(%) | |||||
| 1 | 2 | 3 | 4 | 5 | ||||
| 00-SG-V2 | 0.06mL | 1μL | 2μL | 3μL | 4μL | 5μL | ±2.5 | ≦4.0～≦2.5 |
| 00-SG-S | 0.6mL | 10μL | 20μL | 30μL | 40μL | 50μL | ±1.5 | ≦1.5～≦1.0 |
| 00-SG-M | 1.5mL | 25ul | 50ul | 75ul | 100μL | 125μL | ±1.2 | ≦1.0～≦0.8 |
| 00-SG-N3 | 3mL | 50μL | 100μL | 150μL | 200μL | 250μL | ±1.0 | ≦0.9～≦0.6 |
| 00-SG-L | 6mL | 100μL | 200μL | 300μL | 400μL | 500μL | ±0.8 | ≦0.8～≦0.4 |
| 00-SG-Y | 15mL | 250μL | 500μL | 750μL | 1000μL | 1250μL | ±0.8 | ≦0.6～≦0.3 |
| 00-SG-Z | 60mL | 1mL | 2mL | 3mL | 4mL | 5mL | ±1.0 | ≦1.0～≦0.5 |
| Maximum number of dispenses | 58 | 28 | 18 | 13 | 10 | − | − | |
Syringe
Syringes for 8100
| Cat. No | Content | Q'ty |
|---|---|---|
| 00-SG-V2 | 0.06mL Syringes | 100 |
| 00-SG-S | 0.6mL Syringes(with 100 TS tips) | 100 |
| 00-SG-M | 1.5mL Syringes(with 100 TS tips) | 100 |
| 00-SG-N3 | 3mL Syringes | 100 |
| 00-SG-L | 6mL Syringes | 100 |
| 00-SG-Y | 15mL Syringes | 50 |
| 00-SG-Z | 60mL Syringes(With one adapter) | 50 |
| 00-SG-ZA | Adapter for 60mL syringe | 1 |
Stands
| Cat. No | Storing capacity |
|---|---|
| 00-8100S(Acrylic resin) | 2pcs |
