NICHIRYO  |  SKU: NY-00-NPL02-2

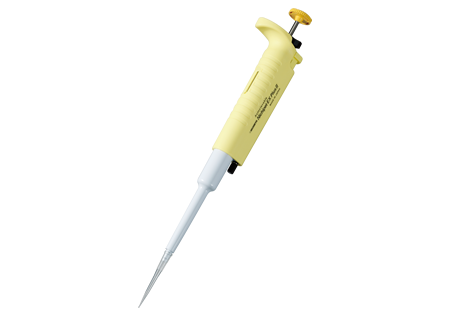

Nichipet EX Plus Ⅱ Autoclavable/UV Stable, Chemical resistant, One-Touch Calibration Digital Micropipette

$361.48 $397.62
Shipping calculated at checkout.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Product Description


Product Reviews

NICHIRYO

Nichipet EX Plus Ⅱ Autoclavable/UV Stable, Chemical resistant, One-Touch Calibration Digital Micropipette

$361.48 $397.62

Features

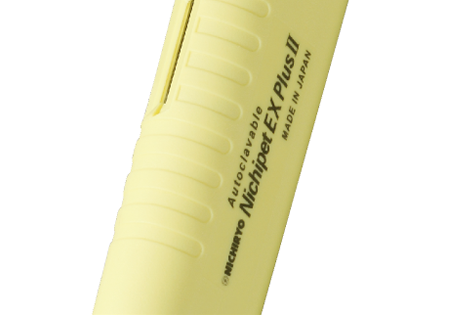

1. Body
Materials used for pipette body have high tolerance to solvents.
Non-grease designed. No need to worry about continuous autoclaving.
2. Easy calibration
Easy calibration with enclosed jig.

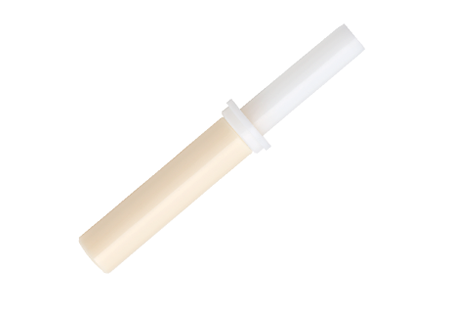

3. Ceramic plunger
Ceramic plunger is used to prevent from corrosion by solvents. (20uL-10000uL)

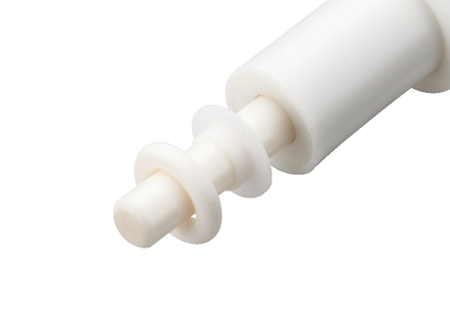

4. O-ring
Chemical-guard O-ring with minimum expansion ratio.

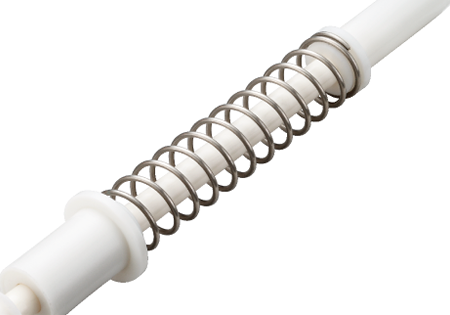

5. Hyper Blower system
Hyper blower system improves dispensing efficiency, especially on 2μL and on 10μL dispensing.

Chemical Resistant Model of Nichipet Series

  • Advanced durability against organic solvent dispensing.
    PTFE ( Fluorine resin ) in the air tight chamber of the instrument.
    A Perfluoro rubber O-ring with low cubical expansion in the airtight parts.
    All models have plungers made in materials resistant to organic solvents.
  • Hyper Blower System; a longer push stroke from the second stop position, to improve dispensing efficiency. (2μL, 10μL)
  • Fully autoclavable. ( 121°C for 20 minutes )
  • Enhanced UV resistance for better use in UV hoods.
  • Easy-Calibration function provides simple lab calibration.
  • Ceramic plungers are used for volume models from 200μL to 10000μL.

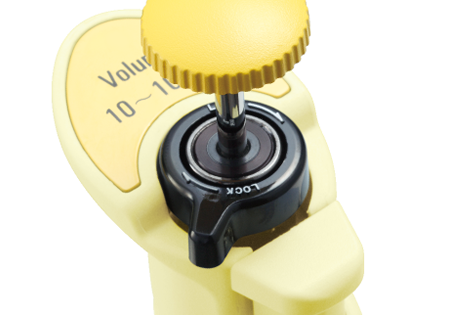

  • The one-touch locking mechanism makes it easy to lock the sample volume.

Specifications

Cat. No Volume Setting Volume range(μL) Increments(μL) Usable tips
00-NPLO2-2 Digital Setting 0.1～2 0.002 BMT2-UT/UTWR、FUT/FUTRB
00-NPLO2-10 0.5～10 0.01 BMT2-SSW/SSWR/SSWRB、
FSS/FSSRB
00-NPLO2-20 2～20 0.02 BMT2-SG/SGR、SE/SER、FSG/FSGRB
00-NPLO2-100 10～100 0.1 BMT2-SG/SGR、SE/SER、FSG/FSGRB※、FSE/FSERB
00-NPLO2-200 20～200 0.2 BMT2-SG/SGR、SE/SER、FSE/FSERB※、FAG/FAGRB
00-NPLO2-1000 100～1000 1 BMT2-LG/LGR、LE/LER、FLG/FLGRB、FLE/FLERB
00-NPLO2-5000 1000～5000 10 BMT2-X/XR
00-NPLO2-10000 1000～10000 10 BMT2-Z/ZR

AC & CV

Cat. No Volume(μL) Accuracy(%) Precision(%)
00-NPLO2-2 0.2 ±12.0 * ≦6.0 *
1 ±5.0 ≦2.5
2 ±3.0 ≦1.0
00-NPLO2-10 1 ±4.0 * ≦3.0 *
5 ±1.0 ≦1.0
10 ±1.0 ≦0.5
00-NPLO2-20 2 ±5.0 ≦3.0
10 ±1.0 ≦1.0
20 ±1.0 ≦0.4
00-NPLO2-100 10 ±2.0 ≦1.0
50 ±1.0 ≦0.3
100 ±0.8 ≦0.3
Cat. No Volume(μL) Accuracy(%) Precision(%)
00-NPLO2-200 20 ±1.0 ≦0.5
100 ±0.8 ≦0.3
200 ±0.8 ≦0.2
00-NPLO2-1000 100 ±1.0 ≦0.5
500 ±0.8 ≦0.3
1000 ±0.7 ≦0.2
00-NPLO2-5000 1000 ±1.0 ≦0.3
2500 ±0.8 ≦0.3
5000 ±0.6 ≦0.2
00-NPLO2-10000 1000 ±2.0 ≦0.4
5000 ±0.8 ≦0.3
10000 ±0.4 ≦0.2
  • * Each accuracy and precision are the values which come from measuring with our compatible tip.
  • * The AC and CV of NPLO2-2 below 0.2μL and NPLO2-10 below 1μL depend on the sampling skill and the sampling condition where pipettes are used.
  • * The Nichipet EX Plus Ⅱ is made of parts resistant to organic solvents which makes it more durable than previous pipettes in environments with organic solvents. However, it does not guarantee accuracy of dispensing organic solvents.
  • * As the body of the Nichipet EX Plus Ⅱ is not resistant to organic solvents, make sure it does not come in contact with the organic solvents.

Chemical List

Chemicals Temperature Test days Perfluoro Fluorine rubber  Nomal O-ring
Inorganic acid & Organic acid
35% Hydrochloric acid  40°C 10 A A
35% Hydrochloric acid  40°C 21 A A
35% Sulfuric acid 40°C 10 A A
98% Sulfuric acid 40°C 11 A A
60% Nitric acid 40°C 10 A A
60% Nitric acid 40°C 21 A A
Glacial acetic acid 40°C 8 A C
Glacial acetic acid 40°C 21 A C
Acetic anhydride 40°C 8 A C
Acetic anhydride 40°C 21 A C
88% Formic acid 40°C 8 A A
88% Formic acid 40°C 21 A A
Inorganic alkalies
30% Sodium hydroxide 40°C 10 A A
30% Sodium hydroxide 40°C 21 A A
10% Sodium hypochlorite 40°C 10 A A
10% Sodium hypochlorite 40°C 21 A A
28% Ammonia water 40°C 10 A B
28% Ammonia water 40°C 21 A D
Ketone, Ester, Ether
Acetone 40°C 21 B D
Methyl ethyl ketone 40°C 21 A D
Methyl isobutyl ketone 40°C 21 B D
Isophorone 40°C 21 A D
Diacetone alcohol 40°C 21 A C
gamma - Butyrolactone 40°C 21 A C
Diethylene carbonate 40°C 21 A D
Acetylacetone 40°C 21 A D
Methyl formate 25°C 21 B D
Methyl acetate 40°C 21 A D
Acetic ether 40°C 21 B D
Isoamyl acetate 40°C 21 A D
Methyl acetoacetate 40°C 21 A C
Ethyl acetoacetate 40°C 21 A C
Acrylic acids 40°C 21 A C
Ethyl acrylate 40°C 21 A D
Diethyl oxalate 40°C 21 A D
Dimethyl maleate 40°C 21 A B
Triethyl phosphate 40°C 21 A D
Tricresyl phosphate 100°C 7 A C
Diethyl ether 25°C 21 B C
1, 4 - dioxane 40°C 21 A C
Methyl - t - butyl ether 100°C 7 A C
Chemicals Temperature Test days  Perfluoro fluorine rubber
Furan & Aldehyde
Tetrahydrofuran 40°C 21 C D
2-Methyl Tetrahydrofuran 40°C 21 B D
Acetaldehyde 25°C 21 B D
Furfural 40°C 21 A B
Furfural 100°C 7 A B
Acetophenone 40°C 21 A C
35% Formalin 40°C 21 A A
Inclusive nitrogen compound
Acrylic nitrile 40°C 21 A C
Formamide 40°C 21 A A
Ethylene diamine 40°C 21 B D
Aniline 40°C 21 A A
Pyridine 40°C 21 A C
N, N - dimethylformamide 40°C 21 A D
N, N - dimethylacetamide 40°C 21 A D
N-methyl-2-pyrrolidone 100°C 7 A D
Carbon hydride, Carbon hydride halide
n - Hexane 40°C 21 B B
Cyclohexane 40°C 21 B A
Isooctane 40°C 21 B A
Decalin 40°C 21 A A
Benzene 40°C 21 B B
Toluene 40°C 21 A B
Xylene 40°C 21 A B
Ethyl benzene 40°C 21 A B
Nitrobenzene 40°C 21 A B
Monochlorotoluene 40°C 21 A B
1, 2 - cyclorbenzene 40°C 21 A B
Chloroform 40°C 21 B B
Carbon tetrachloride 40°C 7 A A
Methylene chloride 25°C 21 B B
Trichlorethylene 40°C 7 A B
Tetrachlorethylene 40°C 21 B B
Tetrachlorethylene 100°C 7 B B
1, 2 - dibromethane 40°C 21 A A
PCTFE solvent S3 R-113 25°C 11 D C
PCTFE solvent S2 R-112 40°C 11 C C
Fluoro-oil 130°C 11 C B
Fluoro-oil 40°C 21 C C
Alcohols
Methanol 40°C 21 A B
Ethanol 40°C 21 A B
Ethylene glycol 40°C 21 A A
Ethylene glycol 130°C 10 A A
Methyl carbitol 40°C 21 A B
Ethyl carbitol 100°C 7 A B
Cyclohexanol 40°C 21 A A
Others, Oil, Steam
DN cut HS-1 cutting oil 130°C 11 A A
Esso Engine oil  175°C 20 A A
O-148LCT Air craft engine oil 175°C 20 A B
JIS No.1 Lubrication oil 175°C 16 A A
ASTM No.3 Lubrication oil 175°C 16 A A
LLC 50% aq 130°C 16 A A
Steam 150°C 30 A A
Steam 190°C 30 A A
95°C hot water 95°C 7 A A

A: Volume expansion rate below 5%…No problem at all
B: Volume expansion rate 5% - 20%…No problem
C: Volume expansion rate 20% - 50%…Possible with some conditions
D: Volume expansion rate over 50%…Nonusable

Option

  • 0.1-2.0 uL
  • 0.5-10 uL
  • 2-20 uL
  • 10-100 uL
  • 20-200 uL
  • 100-1000 uL
  • 1000-5000 uL
  • 1-10 mL
